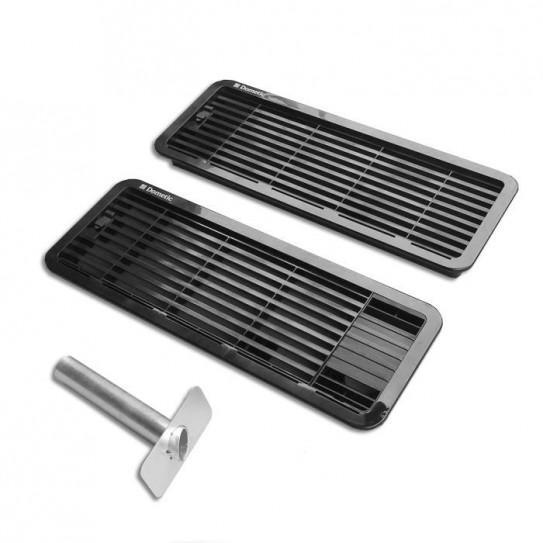

A1625 Ventilation System Dometic Vents and Flue Kits provides optimum ventilation. The advanced ventilation system - model A1625 - is especially designed to significantly better cooling performance of the Dometic absortion refrigerator.
It features 2 mounting frames that are permanently installed onto the outer wall of your RV, plus easily removable ventilation grills that differ from the top and bottom. The bottom grill lets fresh cool air in, while the top vent has 2 outlet sections. The small section to the right takes the exhaust gases/heat directly outside and the larger section takes the warmed up air that flows past the fridge fins to the outside.
Both cut-out holes should be 451 mm wide and 156 mm high. It should be used with all Dometic absorption refrigerators to ensure warranty conditions are meet.
- The mounting frames are held in with 10 stainless steel screws
- Replacement parts are available
- Upper ventilation system consists of: mounting frame R1640U and ventilation gril A1625U
- Lower ventilation system consists of: mounting frame R1650L and ventilation grill R1635L
|Cut-out dimensions-mounting frame (h x w) (mm)||156 x 451|
|External dimensions-ventilation grille (h x w) (mm)||185.2 x 479|
