The Houghton Belaire HB2800-48VDC is a 48 volt DC rooftop variable speed air conditioner. The compressor, indoor and outdoor fans are high efficiency DC motors. This is the perfect air conditoner for off grid camping. Using 48v DC direct from the battery set up, potentially eliminates a DC to AC inverter, allowing for a lower cost and high efficiency power system.



(HB2800-48VDC)

2 Year Warranty

  • High efficiency DC motors extends precious battery capacity. Excellent refrigeration performance gives you more cooling for less power. Stay off grid longer.

  • Double rotor, variable speed compressor with low start current, low vibration and almost no start/stop noise. True soft-start performance.

  • Innovative, high efficiency and low noise air duct system ensures better performance on air flow and noise level.

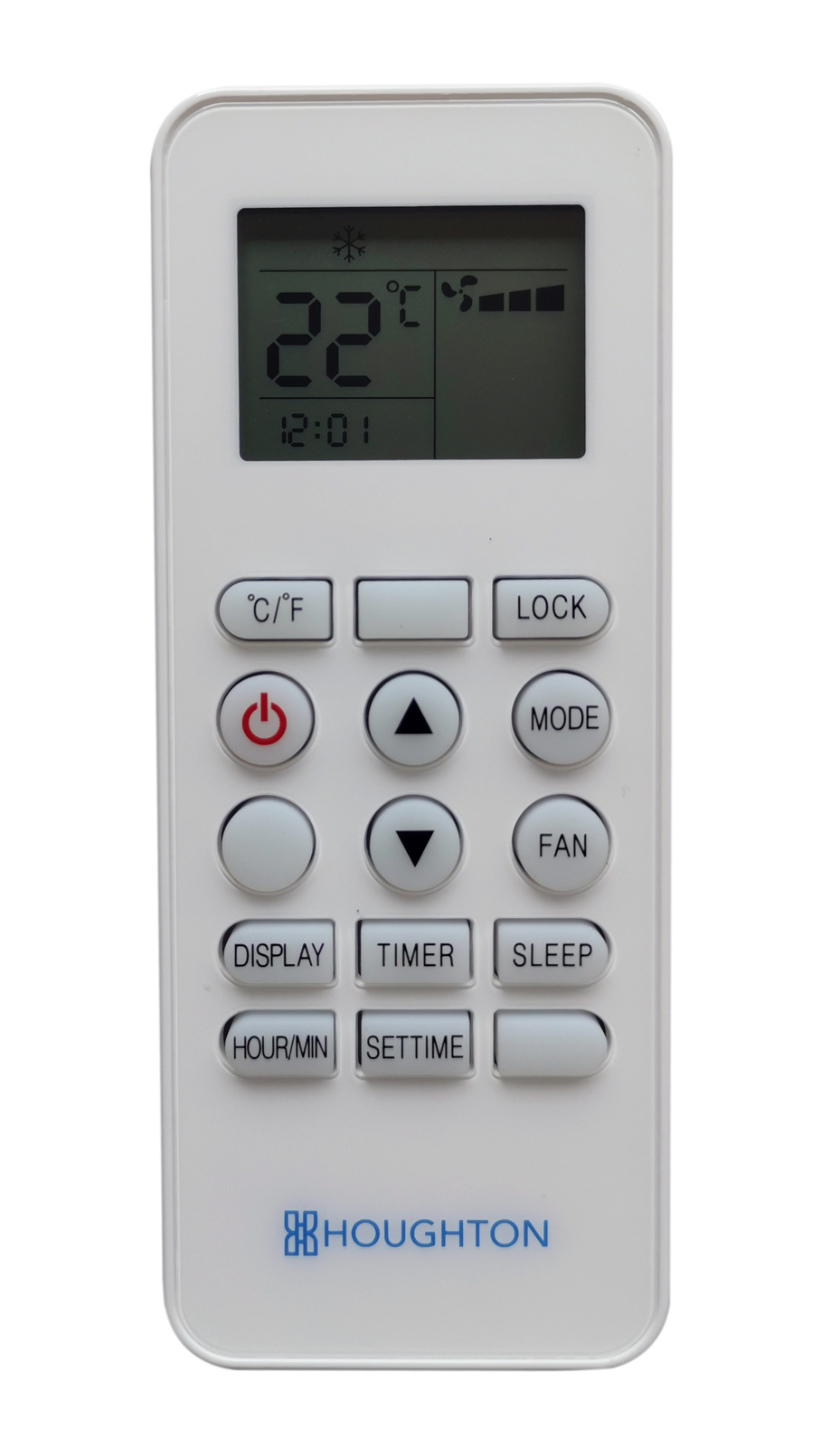

  • Advanced micro controller takes care of compressor and ensures temperature accuracy at £0.5°C.

  • The 4-way outlet from the interior unit allow air flow to be directed throughout the living space.

  • Excellent reverse cycle performance allows the unit to operate in temperatures as low as -5°C and up to +50°C.



  • Power supply                           48 (45-60) VDC

  • Rated cooling capacity            2600 (1700-2800) W

  • Power input cooling                 1200 (790-1260) W

  • Rated current for cooling          24.8A

  • Rated heating capacity            2400 (1600-2500) W

  • Power input heating                 1050 (660-1120) W

  • Rated current for heating         21.8 (13.8-23.3) A

  • Maximum in put power            1450W

  • Maximum current                     30.3A

  • Installed weight                       34.9kg

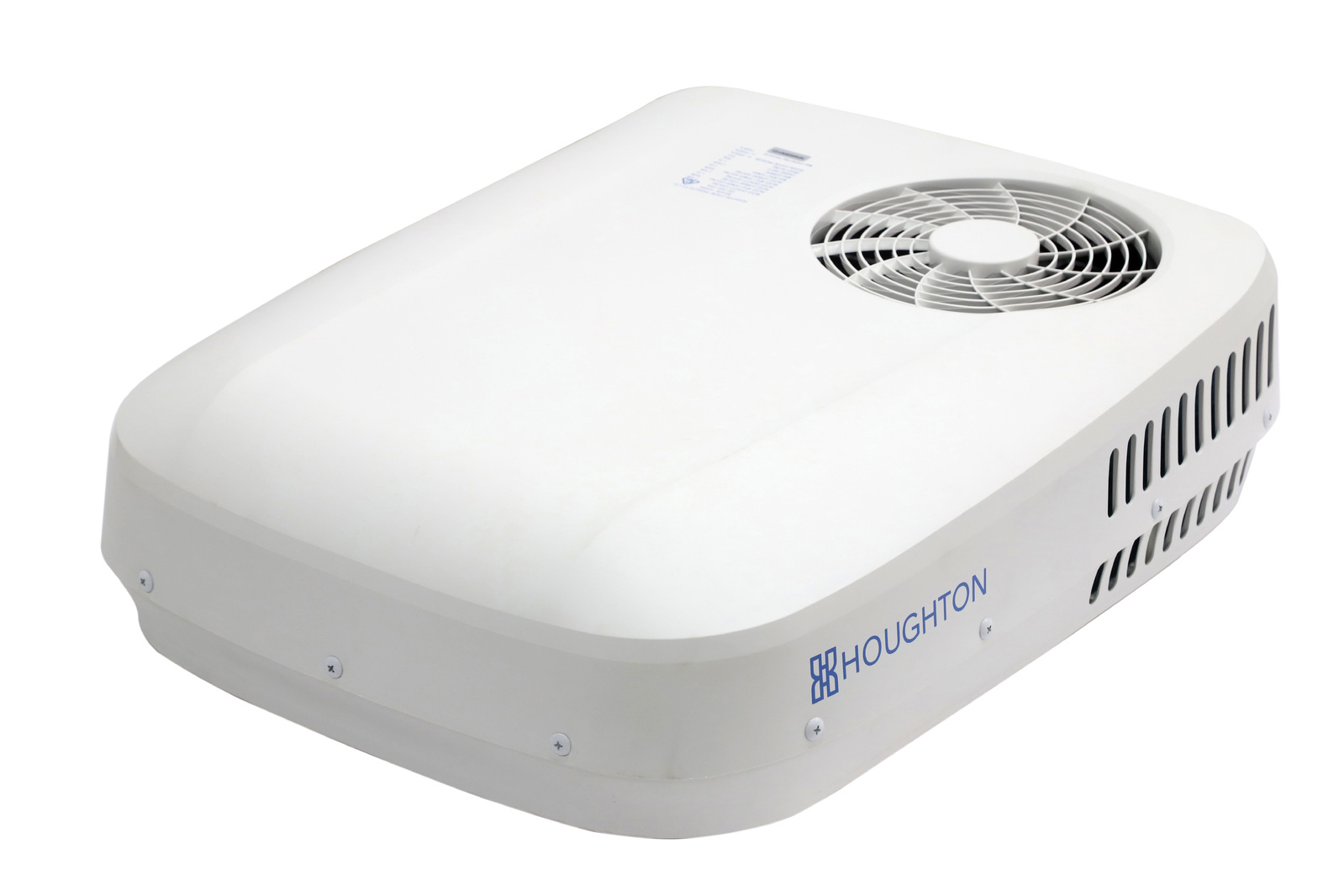

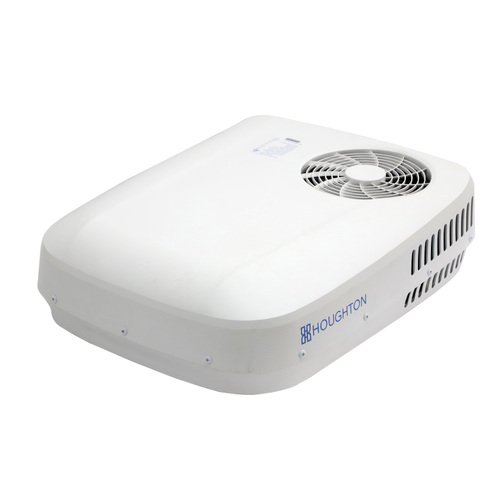

  • Outdoor unit dimensions         215 x 657 x 855 mm

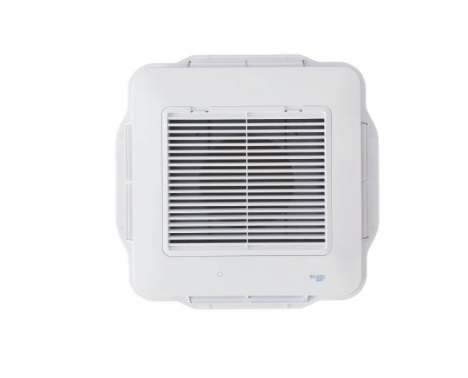

  • Plenum unit dimensions         575 x 556 x 49 mm

  • Roof opening                          360 x 360 mm or additional adaptor requored for 400x400mm

  • Operating temperature range  -5 C to +52 C

SKU HB2800-48VDC
Brand Caravan & Camping OZ
Shipping Weight 40.0000kg
Shipping Width 1.170m
Shipping Height 0.600m
Shipping Length 1.000m
Shipping Cubic 0.702000000m3
Unit Of Measure ea
