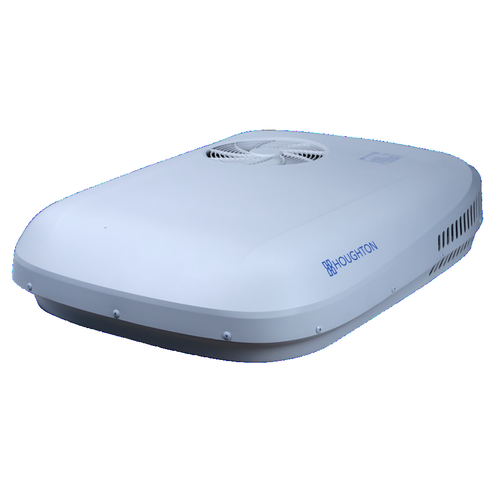

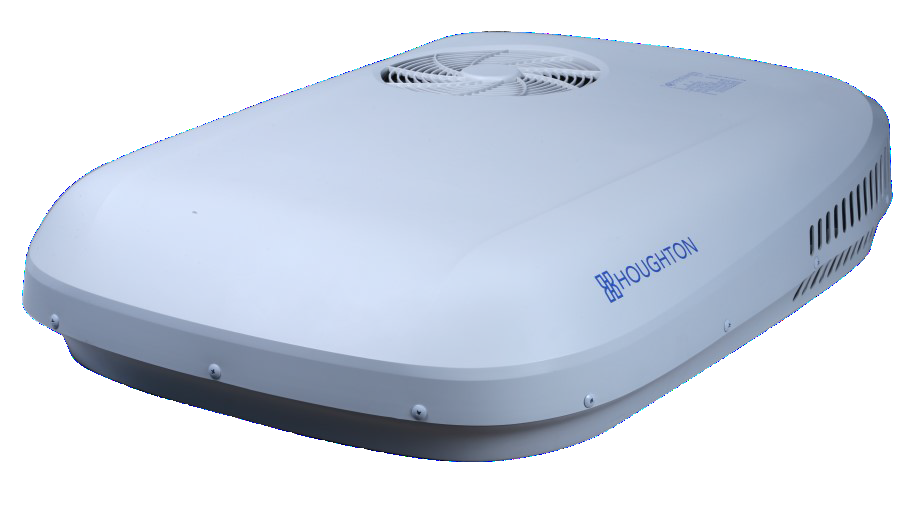

The HB3400 is fitted with an ultra-low elegantly designed plenum that complements modern interiors. Features easy to read LED display showing temperature and mode. Attractive streamlined canopy design to perfectly integrate with modern caravan and motorhome design.

Patented plenum air handler to ensure efficient and comfortable air flow. Patented primary and basic outlets which can be alternated to suit a variety of conditions. Patented air filter design makes it easy and convenient to remove and clean. A classical remote control with cooling, heating, dehumidifying, dry, sleep and timing functions.

Patented three speed, ultra-quiet, high efficiency fan. The large outdoor axial fan draws air to exchange heat, leading to highly efficient, powerful performance. Patented spiral retractable duct allows easy installation without cutting. Isolation eradicates condensation while optimizing power and performance. Super strong and lightweight UV stabilized polypropylene chassis and canopy able to withstand the toughest conditions.

Patented integrated outdoor fan grill is simple, aesthetically pleasing and safe. Excellent reverse cycle performance allows the HB3400 to operate in temperatures as low as minus 5 degrees Celsius and as high as 50 degrees Celsius. Features intelligent defrosting technology. PTC Soft Start technology ensures operation with limited amps or generators

Recommended generator size required to power air conditioner 2kVa or 2.2kVa. Please consider other appliances you may wish to power whilst operating the air conditioner, this will adjust the size generator you will require.

(HB3400)

2 Year Warranty

  • Patented three speed, ultra-quiet, high efficiency fan
  • Patented spiral retractable duct allows easy installation without cutting.
  • Isolation eradicates condensation while optimizing power and performance.
  • Super strong and lightweight UV stabilized polypropylene chassis and canopy able to withstand the toughest conditions.
  • Patented integrated outdoor fan grill is simple, aesthetically pleasing and safe.
  • Excellent reverse cycle performance allows the HB3400 to operate in temperatures as low as minus 5 degrees Celsius and as high as 50 degrees Celsius.
  • Features intelligent defrosting technology.
  • PTC Soft Start technology ensures operation with limited amps or generators
  • Power supply                           220-240V, 50Hz
  • Rated cooling capacity           3200W
  • Rated heating capacity           2800W
  • Rated current for cooling       5.6A
  • Rated current for heating       5.2A
  • Maximum air flow                   150 I/s
  • Installed weight                        48kg
  • Outdoor unit dimensions       223 x 850 x 1122 mm
  • Plenum unit dimensions         49 x 515 x 575 mm
  • Operating temperature range up to 52 C



External Unit Dimensions:

  • Back of hole to rear of AC unit 580mm
  • Front of AC to start of hole 180mm
  • Left and Right side gap is 250mm
SKU HB3400
Brand Caravan & Camping OZ
Shipping Weight 66.0000kg
Shipping Width 1.200m
Shipping Height 0.540m
Shipping Length 0.880m
Shipping Cubic 0.570240000m3
