Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream lithium-ion battery types. The nominal voltage of a LFP cell is 3.2V (lead-acid: 2V/cell). A 12.8V LFP battery therefore consists of 4 cells connected in series, and a 25.6V battery consists of 8 cells connected in series.

** The LiFePO4 Battery will require a BMS unit such as the VE.Bus BMS or SmallBMS.



Nominal voltage

12.8 V

Nominal capacity @ 25°C 200 Ah
Nominal capacity @ 0°C 160 Ah
Nominal capacity @ -20°C 100 Ah
Nominal energy @ 25°C 2560 Wh
80 % DoD 2500 cycles
70 % DoD 3000 cycles
50 % DoD 5000 cycles
Maximum continuous discharge current 400 A
Recommended continuous discharge current ≤200 A
End of discharge voltage 11.2 V
Internal resistance 0.8mΩ
Operating temperature Discharge: -20°C to +50°C Charge: +5°C to +50°C
Storage temperature -45°C to +70°C

(BAT512120610)

5 year warranty

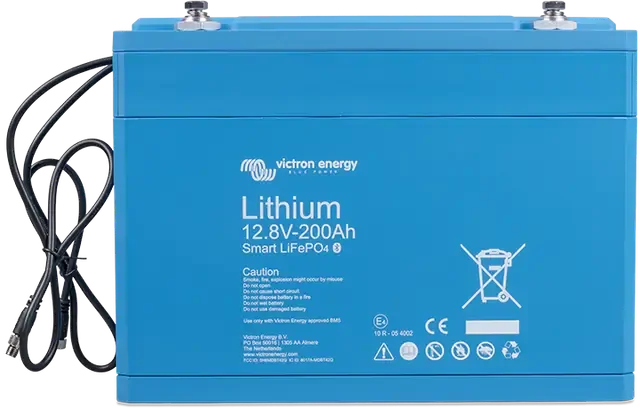

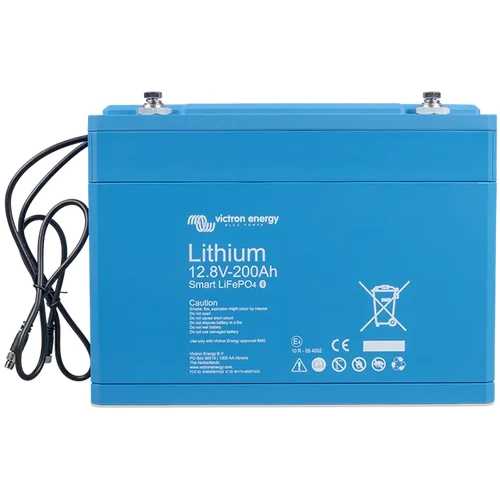

• 200Ah Lithium-ion Phosphate (LiFePO4) Battery

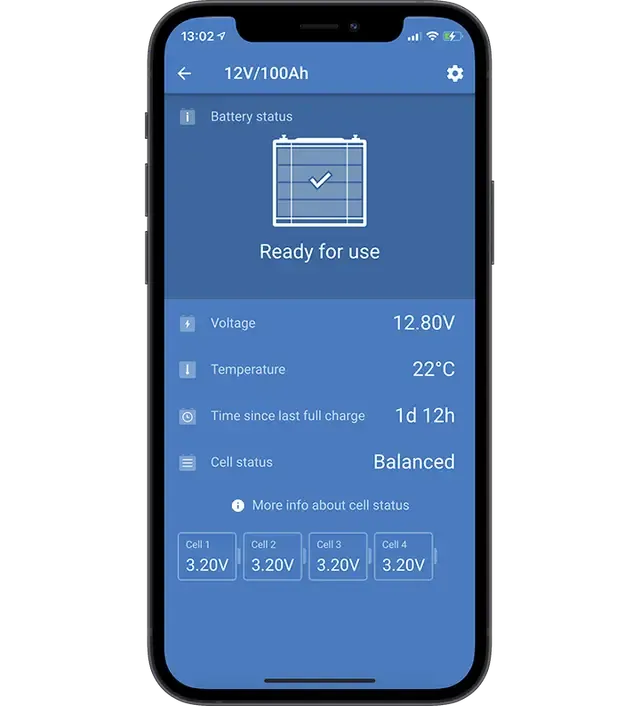

• Built-in Bluetooth
• Integrated Cell Balancing

Humidity (non-condensing) Max. 95 %
Protection class IP 22
Charge voltage Between 14 V/28 V and 14.4 V/28.8 V (14.2 V/28.4 V recommended)
Float voltage 13.5 V/27 V
Maximum charge current 400 A
Recommended charge current ≤100 A
Max storage time @ 25°C 1 year
BMS connection Male + female cable with M8 circular connector, length 50cm
Power connection (threaded inserts) M8
Dimensions 237 x 321 x 152mm
Weight 20 kg
SKU BAT512120610
Brand Springers Solar
Shipping Weight 20.0000kg
Shipping Width 0.250m
Shipping Height 0.200m
Shipping Length 0.350m
Shipping Cubic 0.017500000m3
