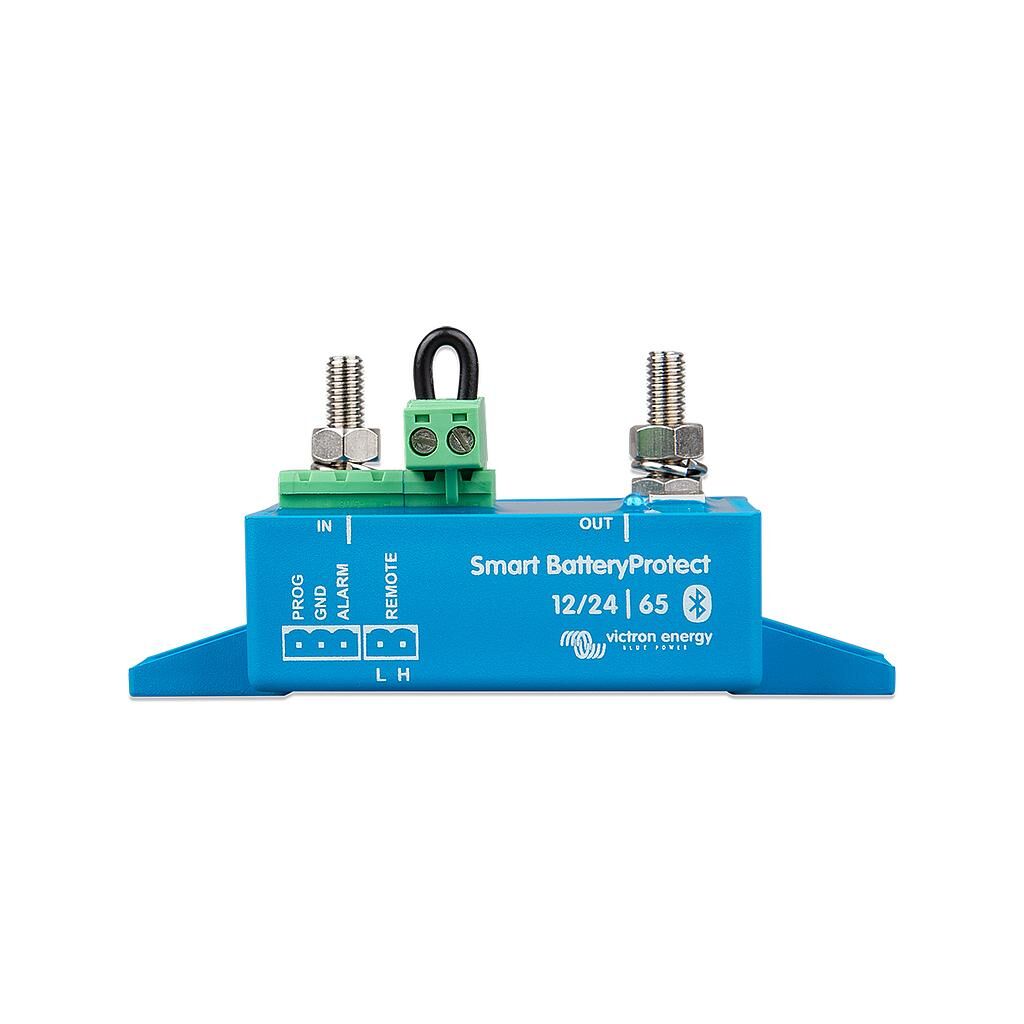

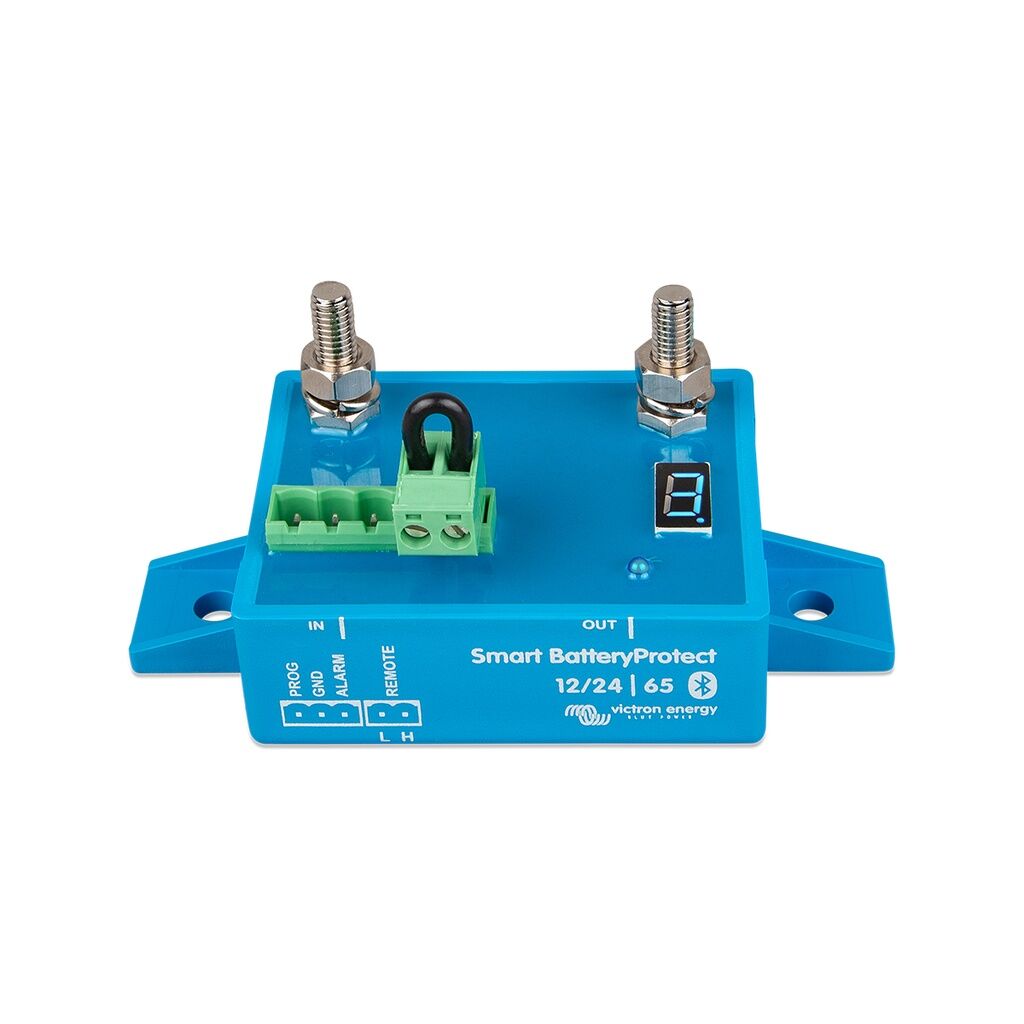

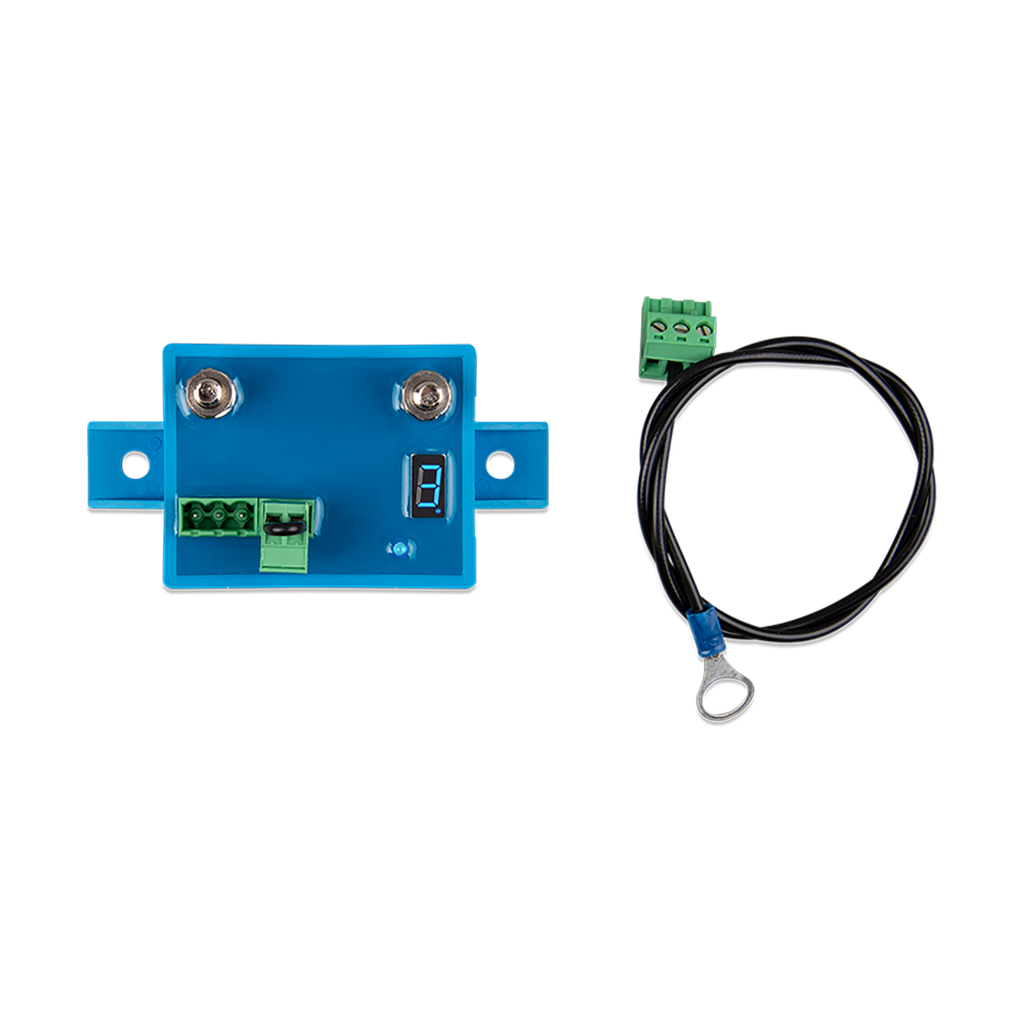

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch.

Features:

  • Smart Low Voltage Disconnect
  • Built-In Bluetooth
  • Easy Programming
  • Li-ion Battery Comptibile
  • Over Voltage Protection
  • 12/24v
  • 65amps
  • Controlled by the VE.Bus BMS



(BPR065022000)

Features:
• 65A Smart Battery Protect
• Smart Low Voltage Disconnect
• Li-ion Battery Compatible

Maximum continuous load current

65 A

Peak current (during 30 seconds) 250 A
Operating voltage range 6 –35 V
Current consumption: BLE On When on: 1.4 mA,   When off or low voltage shutdown: 0.9 mA
Current consumption: BLE Off When on: 1.2 mA,   When off or low voltage shutdown: 0.7 mA
Alarm output delay 12 seconds
Maximum load on alarm output 50 mA (short circuit proof)
Load disconnect delay 90 seconds (immediate if triggered by the VE.Bus BMS
Load reconnect delay 30 seconds
Default thresholds Disengage: 10.5 V or 21 V,   Engage: 12 V or 24 V
Operating temperature range Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating Electronics: IP67 (potted),   Connections: IP00
Connection M6
Mounting Torque 5 Nm
Weight 0.2 kg
Dimensions 48 x 55 x 106 mm
SKU BPR065022000
Brand Springers Solar
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
