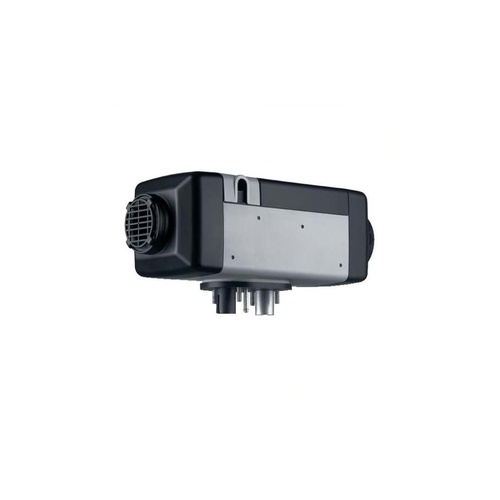

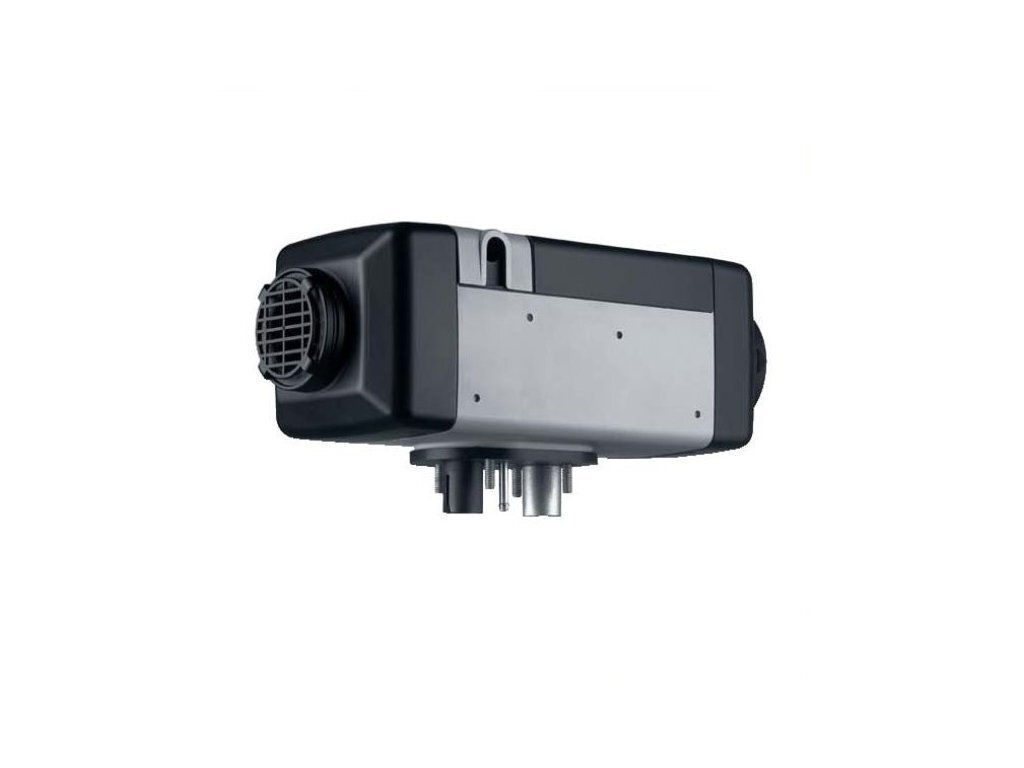

Webasto air heaters provide continuous heating power output via stepless modulation. The heater operates quietly while consuming minimal electrical power and fuel. Easily mounted in your Caravan, Motorhome or Campervan.

In Caravans, the heater can be mounted under the bed or in a cupboard connected directly to its own diesel 12L fuel tank (optional extra). In Motorhome installations, the fuel can be taken directly from the main diesel tank on board. On average the AirTop heater will use between 0.12-0.24L per hour of diesel. Twin air outlets allow for cabin heating and using the ensuite as dry room in colder/wet climates.

The integrated altitude sensor constantly ensures an optimal combustion process in altitudes up to 2,200m under lower air pressure and with a lower oxygen ratio. The Air Top Evo models feature an in-built air pressure sensor as standard whereas the Air Top 2000 STC model is offered with an optional altitude switch.

The AirTop Heater comes with a sophisticated programmable Multi Control with features such as economical heating, boost heating, ventilation mode, high altitude mode & timer function.

This Heater unit is made in Germany and comes with a 2 year warranty.

Each kit comes with everything required to install the heater. Each kit includes: 1x Controller, 1x Floor mount heater bracket, 2x Metres 60mm Ducting hose, 8x Duct Clamp 47-70mm, 1x Air Outlet, 1 x Closeable Air Outlet, 2x Hose connector for outlet, 1x Vent 600mm flat open, 1 x Branch pipe 60x60x60mm

(KTH-2OUTW12V-PGM)

2 Years Warranty

  • Heat output: 3,100 – 7,000 BTU/h (0.9 – 2.0 kW)
  • Uses as little as 1 Gallon (3.8 l) of fuel in a 22 hour period
  • CARB approved
  • Full diagnostic capability with PC interface availability
  • Diesel/Gasoline
  • 12V / 24V
Specifications

Air Top 2000 STC

Heating power (kW)

0,9 - 2,0

Fuel

Diesel

Fuel consumption (l/h)

0.13 - 0.27

Rated voltage (V)

12/24

Operating voltage range (V)

10 - 15

Rated power consumption (W)

14 - 29

Dimensions L x W x H (mm)

311 x 120 x 121

Weight (kg)

2.6

Air flow (m3/h)

93

SKU KTH-2OUTW12V-PGM
Brand Caravan & Camping OZ
Shipping Weight 10.0000kg
Shipping Width 0.600m
Shipping Height 0.300m
Shipping Length 0.400m
Shipping Cubic 0.072000000m3
