The EVO5 Hydronic, Integrated Hot Water System, is an industry benchmark for diesel fired hot water systems operated by a Digital multi controler.
The unit comes pre-assembled and tested for easy installation and can be operated whilst on the move, providing hot water and/or warm air.

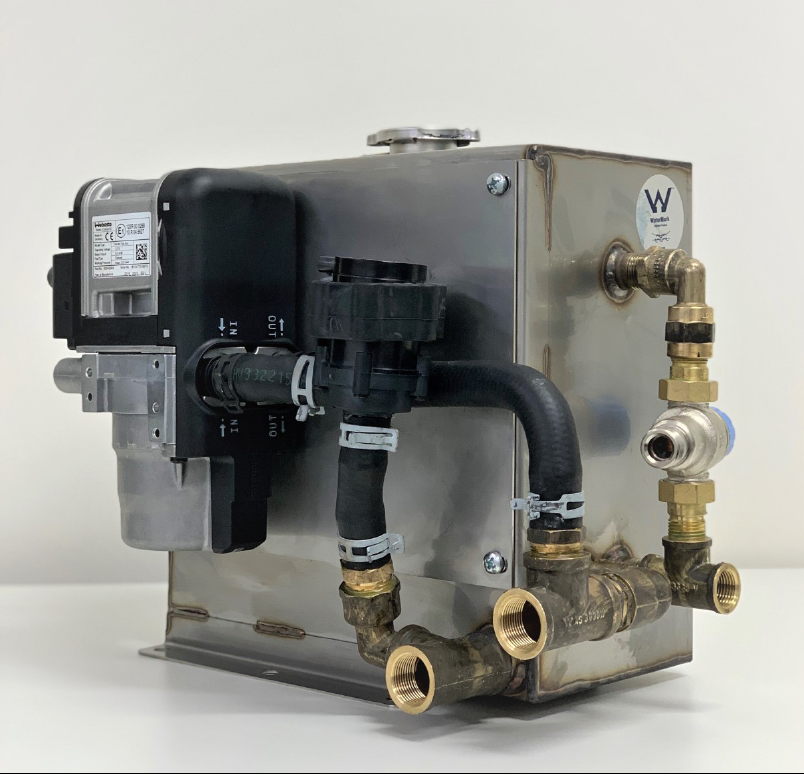

A Webasto Thermo Top Evo 5kW diesel furnace is mounted next to a 15L Buffer Tank which contains a Plate Heat Exchanger. This combination makes for a very compact unit.

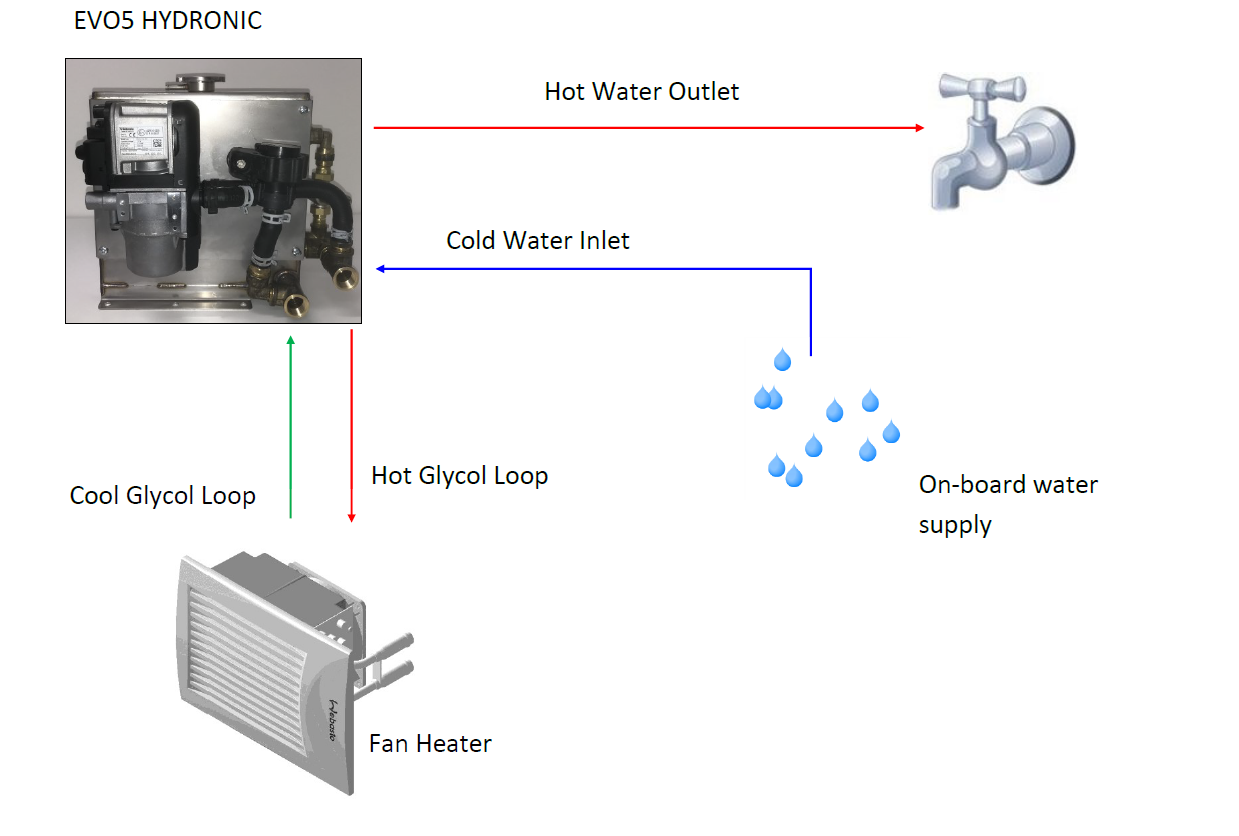

The Thermo Top Evo 5 heats glycol that is stored in the Buffer Tank (to approximately 80°C). This heated coolant goes through the Plate Heat Exchanger that has on-board water going through it as well. The water is heated via heat transfer. By utilising rubber heater hoses and brass plumbing fittings, you can incorpo-rate a Fan Heater to provide you with the comfort of warm air.
A Fan Heater is an optional extra to provide warm air  (KTHPHEC-FAI 1.7kw 12v Cabin Heater)


Brand Webasto
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.300m
Shipping Cubic 0.048000000m3
